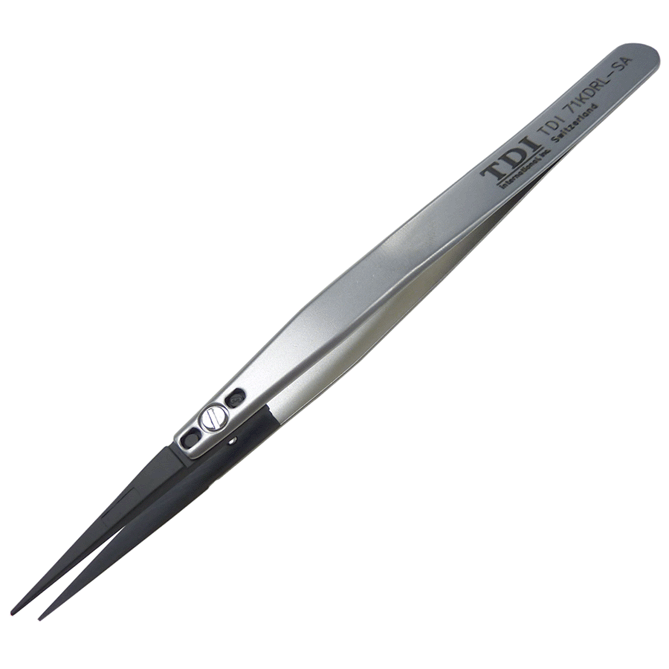

#TDI 71KDRL-SA High Precision Swiss Static Dissipative “KD” Tweezers
71 Style Slender Thin Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Longer Tips Replaces TDI 71KDR-SA
Class 0 CDM Compliant.
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/4″
Tip Width (B): .028″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.173″
Standard Features:
- Alignable Replacement Tips – Static Dissipative Zirconia Ceramic Tips – “KD”®
- Excellent Transient Current Discharge
- Surface Resistivity 106 to 108 Ohms/sq. at 50V and 100V Threshold
- Surface Resistivity 107 to 109 Ohm/sq. at 10V Threshold
- Enhanced Break Strength and Surface Finish
- Extreme High-Temperature Tip Resistance 1000°C
- High Precision Fine Tip Symmetry & Balance
- Stainless Anti-Magnetic Handles – “SA”
- Solder, Chemical, Solvent & Acid Resistant, Lead free
More Ceramic Tweezers Info:
- Alignable Replacement High Precision Tips *US Patent #5899513
- Quality Assurance Class 0 CDM Test Procedure
- Transient Current Discharge Chart
- “KD”® Material Data Sheet
- “KD”® Chemical Compatibility Chart
- Comparison of Ultra Precision Ceramic Tip Styles
