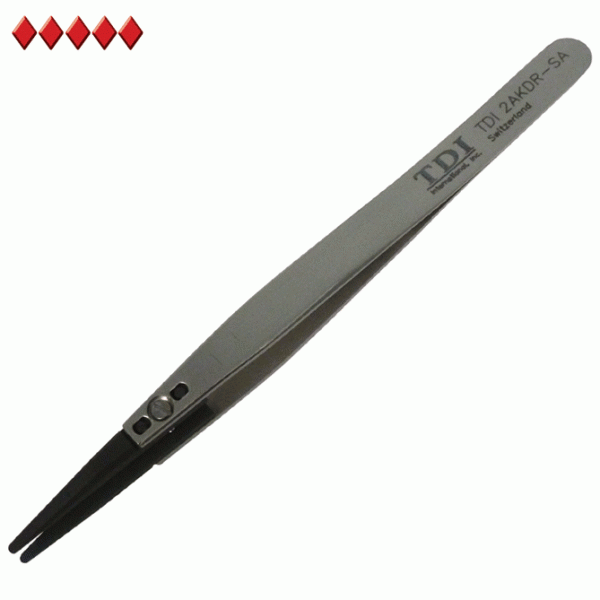

#TDI 2AKDR-SA High Precision Swiss Static Dissipative “KD” Tweezers
2A Style Flat Duckbill Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Class 0 CDM Compliant
Most Critical ESD Applications <40V ESD Threshold

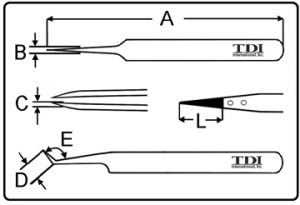

Dimensions:
Overall Length (A): 5-1/8″
Tip Width (B): .070″
Tip Thickness (C): .048″
Replaceable Tip Length (L): .970″
Standard Features:
- Alignable Replacement Tips – Static Dissipative Zirconia Ceramic Tips – “KD”®
- Excellent Transient Current Discharge
- Surface Resistivity 106 to 108 Ohms/sq. at 50V and 100V Threshold
- Surface Resistivity 107 to 109 Ohm/sq. at 10V Threshold
- Enhanced Break Strength and Surface Finish
- Extreme High-Temperature Tip Resistance 1000°C
- High Precision Fine Tip Symmetry & Balance
- Stainless Anti-Magnetic Handles – “SA”
- Solder, Chemical, Solvent & Acid Resistant, Lead-Free
