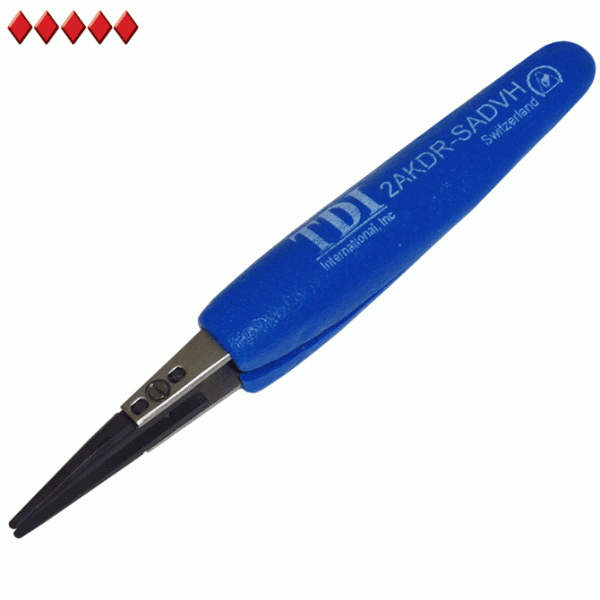

Name: #TDI 2AKDR-SADVH High Precision Static Dissipative "KD" Tweezers with ESD Cushion Grips
SKU: TDI 2AKDR-SADVH
Price: 101.50 USD
Availability: InStock

#TDI 2AKDR-SADVH High Precision Static Dissipative “KD” Tweezers with ESD Cushion Grips

$101.50

Flat Duckbill Tips
Replacement Tips

Class 0 CDM compliant, most critical ESD applications < 40V ESD threshold
Static dissipative zirconia ceramic tips, stainless anti-magnetic handles.

Overall Length (A): 5-1/8″
Tip Width (B): .070″
Tip Thickness (C): .048″
Replaceable Tip Length (L): .970″

tweezer-diagram-oblong-new-c

“KD”® Tweezers with ergonomic ESD safe static dissipative “DVH” cushion grips reduce stress and tension on fingers, while providing superior operator comfort when working continuously with small parts. Available for most tweezer styles.

TDI pioneered the “KD”® Static Dissipative Ceramic Tweezers for most critical ESD applications with excellent transient current discharge performance that meets less than 40V ESD threshold Class 0 CDM Compliance.

“KD”® High Precision Ceramic tip tweezers provide the features of enhanced strength and high surface finish ceramic tip material with alignable replacement tips and anti-magnetic stainless steel handles. These tweezers are excellent for ultra high temperature applications and handling of sensitive ceramic and glass parts where nonmetallic scratching is critical.

Standard Features:

Static Dissipative Zirconia Ceramic Tips – “KD”®
Extreme High Temperature Tip Resistance 1000°C
Most Critical ESD Applications
Excellent Transient Current Discharge Performance
Low Resistance Limit: 10⁶ Ohm/high resistance limit: 10⁸ Ohm at 50 and 100V
Low Resistance Limit: 10⁷ Ohm/high resistance limit: 10⁹ Ohm at 10V
Enhanced Break Strength and Surface Finish
Stainless Anti-Magnetic Handles – “SA”
High Precision Fine Tip Symmetry & Balance
Solder, Chemical, Solvent & Acid Resistant
Ergonomic blue vinyl cushion grips “DVH”
Reduces stress and tension on fingers, and provide superior operator comfort when working continuously with small parts.
ESD safe static dissipative 10⁹-10¹¹ Ohms/sq.
Lead free
High Precision Fine Tip Symmetry & Balance
