High Precision Conductive “CF” CarboFib Tip Tweezers
TDI “CF” conductive carbofib tweezers provide the features of a durable tip material with self-aligning replacement tips and anti-magnetic handles. These fiber tip tweezer tips are perfectly balanced offering fine tip symmetry and alignment for precision handling applications.
The “CF” tweezers are popular in standard ESD and general electronics assembly and lab applications. These “CF” tweezers are excellent for handling sensitive ceramic and glass parts where nonmetallic scratching is critical.
Standard Features:
Conductive “CF” CarboFib
Surface Resistivity 102 Ohms/sq.
Self Aligning Replacement Precision Tips
Temperature Resistant 130°C (Continuous Use) -190°C (Short Time)
Stainless Anti-Magnetic Handles – “SA”
High Precision Fine Tip Symmetry and Balance
Lead free
More Information:
Replacement Tips
Self Aligning Tip Replacement Procedure
“CF” Material Data Sheet
“CF” Chemical Compatibility Chart
Showing all 12 results
2A CarboFib Tweezers – Wide Flat Duckbill Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Dimensions:
Overall Length (A): 5″
Tip Width (B): .070″
Tip Thickness (C): .024″
Replaceable Tip Length (L): 1.02″
2AB CarboFib Tweezers – Curved Wide, Flat Duckbill Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Dimensions:
Overall Length (A): 5-1/8″
Tip Width (B): .070″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″

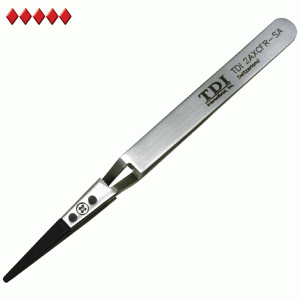

2AX Style – 2A Reverse Action with Wide Flat Duckbill Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Dimensions:
Overall Length (A): 5″
Tip Width (B): .070″
Tip Thickness (C): .024″
Replaceable Tip Length (L): 1.02″
Style 3 CarboFib Tweezers – Very Sharp Pointed Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Dimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .039″
Replaceable Tip Length (L): 1.02″

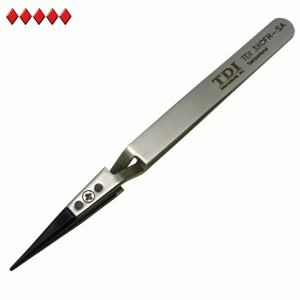

3 Style – 3 Reverse Action with Very Sharp, Pointed Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Dimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .039″
Replaceable Tip Length (L): 1.02″
Style 5 CarboFib Tweezers – Very Fine Tips Tapered for Maximum Visibility
Conductive carbofib tips, stainless anti-magnetic handles.
Dimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .016″
Replaceable Tip Length (L): 1.02″

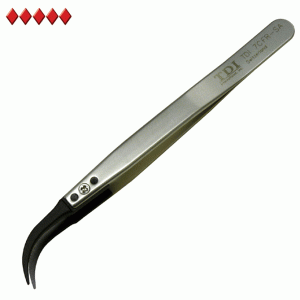

Style 7 CarboFib Tweezers – Curved Very Fine Tips
Replacement Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Overall Length (A): 5-1/2″
Tip Width (B): .024″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″

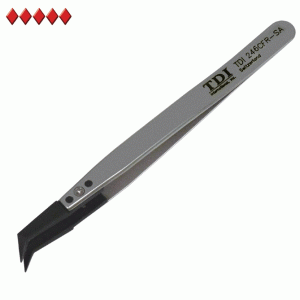

246 CarboFib Tweezers – Thin Angled Head Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Dimensions:
Overall Length (A): 5-1/8″
Tip Width (B): .030″
Tip Thickness (C)C: .030″
Bent Tip Length (D): .35″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″
249 CarboFib Tweezers – Strong Thick Tips
Replacement Tips
Cushion Handle Version
Conductive carbofib tips, stainless anti-magnetic handles.
Overall Length (A): 5-1/8″
Tip Width (B): .090″
Tip Thickness (C): .045″
Replaceable Tip Length (L): 1.02″
259 CarboFib Tweezers – Strong Pointed Tips
Replacement Tips
Conductive carbofib tips, stainless anti-magnetic handles.
Overall Length (A): 5″
Tip Width (B): .027″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.02″
Plastic Tweezers with Flat Duckbill Tips
Conductive “CF” CarboFib Fully Molded Plastic Tweezers
Overall Length (A): 4-1/4″
Tip Width (B): .079″
Tip Thickness (C): .031″

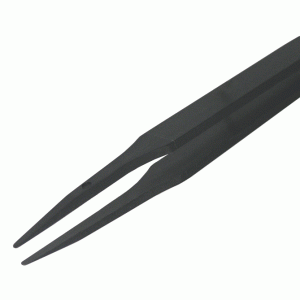

Angled Pointed Tips
Conductive “CF” CarboFib Fully Molded Tweezers
Overall Length (A): 4-1/2″
Tip Width (B): .016″
Tip Thickness (C): .047″
