Ceramic Tweezers – High Precision Static Dissipative “KD”® Ceramic Replaceable Tip Tweezers
TDI pioneered the “KD”® Static Dissipative Ceramic Tweezers for most critical ESD applications with excellent transient current discharge performance < 40V ESD threshold Class 0 CDM Compliant.
High Precision Ceramic tip tweezers provide the features of enhanced strength and high surface finish ceramic tip material with alignable replacement tips and anti-magnetic stainless steel handles. These tweezers are excellent for ultra high temperature applications and handling of sensitive ceramic and glass parts where nonmetallic scratching is critical.
Standard Features:
Static Dissipative Zirconia Ceramic Tips – “KD”®
< 40V ESD threshold Class 0 CDM
Excellent Transient Current Discharge Performance
Surface Resistivity 106 to 108 Ohms/sq. at 50V and 100V Threshold
Surface Resistivity 107 to 109 Ohm/sq. at 10V Threshold
Alignable Replacement Tips
Enhanced Break Strength and Surface Finish
Extreme High-Temperature Tip Resistance 1000°C
High Precision Fine Tip Symmetry & Balance
Stainless Anti-Magnetic Handles – “SA”
Solder, Chemical, Solvent & Acid Resistant
Lead free
More Information:
Replacement Tips
Alignable Tip Replacement Procedure
Test Procedure: Quality Assurance Class 0 CDM
“KD”® Material Data Sheet
“KD”® Chemical Compatibility Chart
Comparison of Ultra Precision Ceramic Tip Styles
Showing all 4 results
2A Style Flat Duckbill Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Class 0 CDM Compliant
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/8″
Tip Width (B): .070″
Tip Thickness (C): .048″
Replaceable Tip Length (L): .970″
7 Style Very Fine Curved Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Class 0 CDM Compliant
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/2″
Tip Width (B): .024″
Tip Thickness (C): .047″
Angle (E): 45°
Replaceable Tip Lenght (L): 1.18″

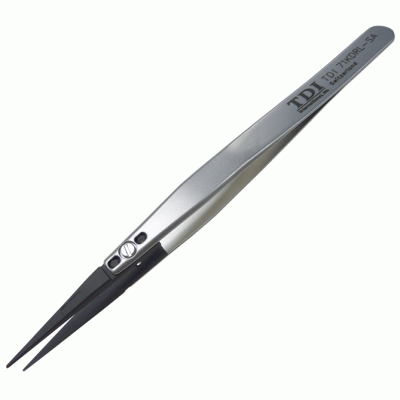

71 Style Slender Thin Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Longer Tips Replaces TDI 71KDR-SA
Class 0 CDM Compliant.
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/4″
Tip Width (B): .028″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.173″
73 Style Fine Pointed Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Class 0 CDM Compliant
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/2″
Tip Width (B): .024″
Tip Thickness (C): .047″
Replaceable Tip Length (L): 1.02″
