TDI pioneered the static dissipative class 0 tweezers with replaceable tips
for most critical ESD applications with excellent transient current discharge performance that meets less than 40VESD threshold Class 0 CDM Compliance.
History of Static Dissipative ESD Tweezers | ESD Glossary of Terms
For more information please see: DA Class 0 Definition for Manufacturing – Dangelmayer Associates, LLC.
Showing 1–12 of 18 results
2A Style Flat Duckbill Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Class 0 CDM Compliant
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/8″
Tip Width (B): .070″
Tip Thickness (C): .048″
Replaceable Tip Length (L): .970″
7 Style Very Fine Curved Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Class 0 CDM Compliant
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/2″
Tip Width (B): .024″
Tip Thickness (C): .047″
Angle (E): 45°
Replaceable Tip Lenght (L): 1.18″
71 Style Slender Thin Tips
Static Dissipative Zirconia Ceramic Tips “KD”®
Longer Tips Replaces TDI 71KDR-SA
Class 0 CDM Compliant.
Most Critical ESD Applications <40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/4″
Tip Width (B): .028″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.173″
2A Style Wide Flat Duckbill Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD Threshold
Dimensions:
Overall Length (A): 5″
Tip Width (B): .080″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.02″
5 Style Very Fine Tips Tapered for Maximum Visibility
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD Threshold
Dimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .024″
Replaceable Tip Length (L): 1.02″
7 Style Curved Very Fine Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD Threshold
Dimensions:
Overall Length (A): 5-1/2″
Tip Width (B): .024″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″
249 Style Tweezers – Strong Thick Tips
Class 0 CDM Compliant. Most Critical ESD Applications < 40V ESD Threshold. Static Dissipative Polymer Tips – “TD”®
Overall Length (A): 5-1/8″
Tip Width (B): .090″
Tip Thickness (C): .045″
Replaceable Tip Length (L): 1.02″
259 Style Strong Pointed Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD Threshold
Dimensions:
Overall Length (A): 5″
Tip Width (B): .024″
Tip Thickness (C): .039″
Replaceable Tip Length (L): 1.02″
Class 0 CDM Compliant. Most Critical ESD Applications < 50V ESD Threshold. Static Dissipative Polymer Tips – “TD”®
Tip Width (B): .080″
Tip Thickness (C): .020″
Replaceable Tip Length (L): 1.02”

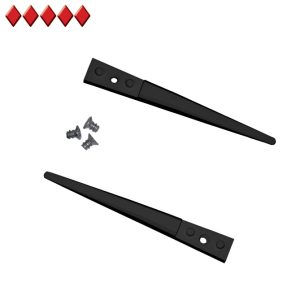

2AB Style Replacement Tips (Pair)
Class 0 CDM Compliant. Most Critical ESD Applications < 50V ESD Threshold. Static Dissipative Polymer Tips – “TD”®
Tip Width (B): .070″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″
Replaceable Tip Length (L): 1.02″
5 Style Replacement Tips (Pair)
Class 0 CDM Compliant. Most Critical ESD Applications < 50V ESD Threshold. Static Dissipative Polymer Tips – “TD”®
Tip Width (B): .024″
Tip Thickness (C): .024″
Replaceable Tip Length (L): 1.02″
7 Style Replacement Tips (Pair)
Class 0 CDM Compliant. Most Critical ESD Applications < 50V ESD Threshold. Static Dissipative Polymer Tips – “TD”®
Tip Width (B): .024″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″
