DESICCATOR CABINET OPTIONS

#NS16 Nitro-Save® Humidity Control Monitor
Solid State Sensor System for Accurately Controlling Pre-Set Relative Humidity
- Accuracy: ±2% at 3-80%RH
- Silent Operation
- High Reliability – No Electromechanical Switches
- Solenoid Control Valve & Internal Sensor System
- Sensor System Activates Solenoid as N2/CDA Flow Required

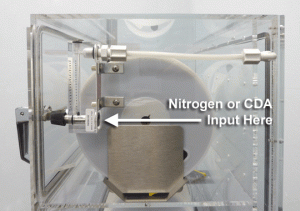

- Continuous In Line Nitrogen or Clean Dry Air Required.
- Must Operate at 80 PSI (min) to 100 PSI (max) for Optimum Performance
- Reduces Nitrogen Consumption to 90% (20%RH) in Many Applications
Electrical: 120V AC/DC
Power Supply UL Approved
(In-House Adapter may be Required for Foreign Voltage)
This unit displays temperature as well, but it is not calibrated to monitor it.
MORE DESICCATOR CABINET OPTIONS

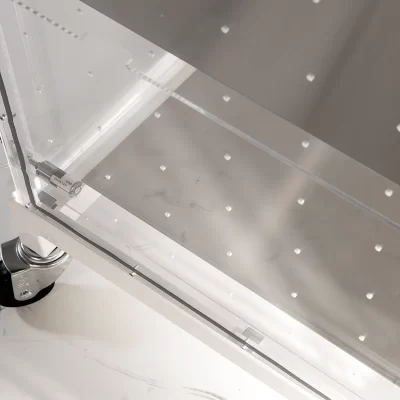

Plenum Chamber

Purges nitrogen into compartments
at an even rate. Features removeable
back wall. Static dissipative desiccators
include static dissipative back plenum wall.
Adds 1 additional inch to cabinet depth.
Bleeder Valve
Continuously relieves excess nitrogen.
Ultra Nitro-Flow compartment flow-
throughs allow for a single bleeder
valve per multiple compartment desiccator.

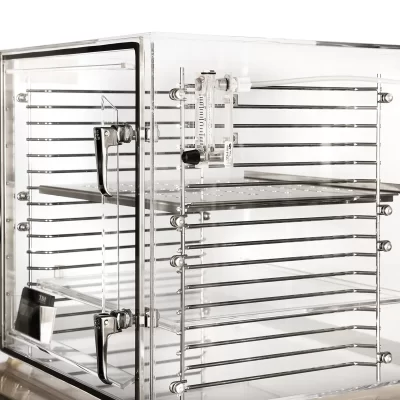

Heavy-Duty Shelf Racks

Two Required per Compartment Allows for shelf position

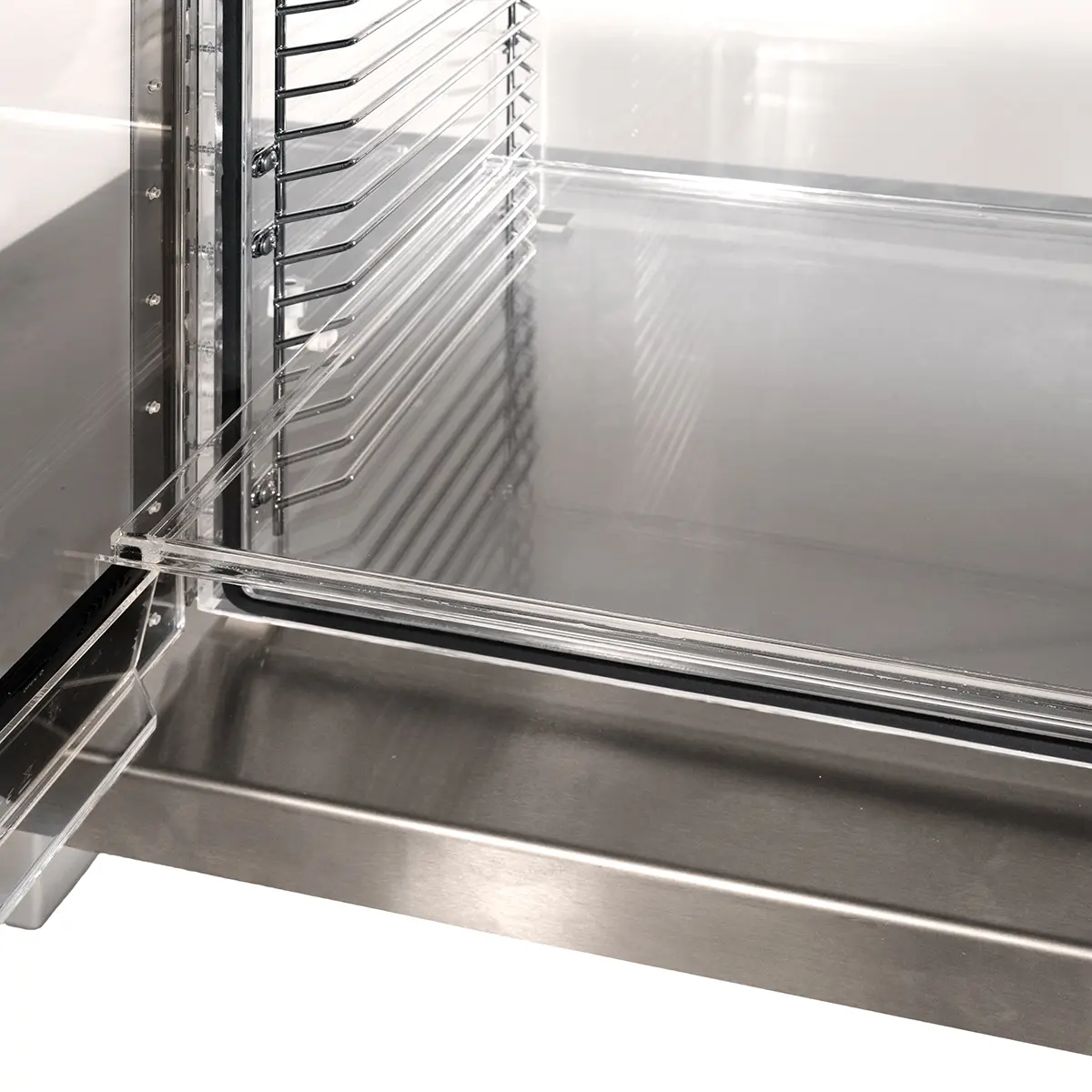

Solid Acrylic Shelves

Up to 18″W Desiccators
1/4″ Thick – 25 lbs. Max
24-48″W Desiccators
3/8″ Thick – 40 lbs. Max
Perforated Stainless Steel Shelves

Required for Grounding – 40 lbs. Max
Perforated 1/2″ Diameter Holes
for Improved Air Flow
Stainless Steel Plates

Required for Grounding.
Protects acrylic from surface
abrasion. Mounted to each
compartment floor.
Grounding

Grounding wire connects from
hinge to hard ground in ESD Desiccator.
All racks, shelves, plates, latches &
hinges connect to this common ground.

Economical desiccator temperature
& humidity level indicator. Mounted
in acrylic pocket.
Camlocks

Keyed alike or differently. On all
doors or specify number and location
as required when requesting a quote.
Acrylic ID Pockets

Door mounted acrylic ID card
holder. On all doors or specify
number & location as required
when requesting a quote.
Painted Steel Stand

Heavy-duty with cross member
supports for lifetime durability.
Levelers or casters available.
Painted class 100 steel.
Lockable Casters

Recommended for large capacity
desiccator cabinets for enhanced
mobility.
