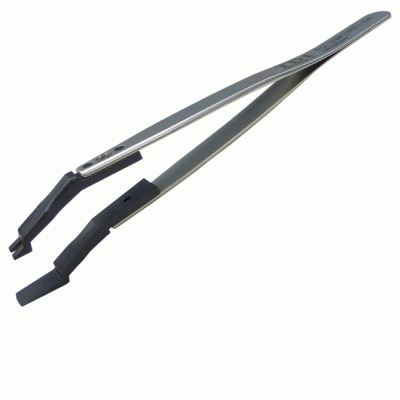

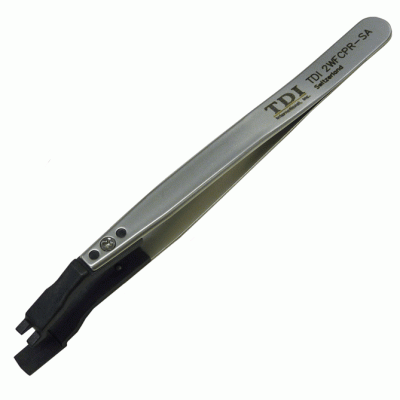

2" peek replacement tips for wafer tweezers

#TDI 2WFCPT High Precision Swiss “CP” PEEK Replacement Tips (Pair)

$15.05

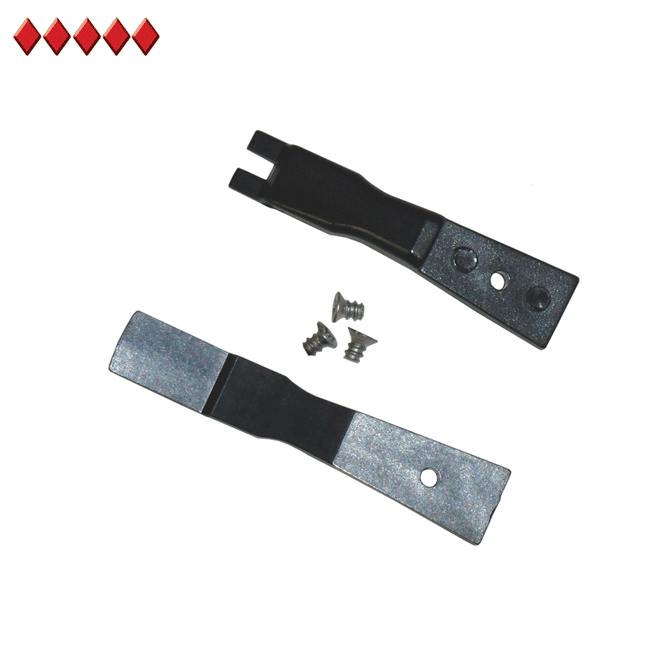

1 Pair “2WF” Style replacement conductive “CP” tips

A: .258″
B: .419″
C: .060″
D: .140″
E: .180″

wafer tweezers dimension diagram

ESD safe conductive tips 103-105 Ohms/sq.

Temperature Resistance 260°C (Continuous Use) – 300°C

Wafer tweezers with replaceable tips offer the following features & benefits:

  • High Precision Fine Tip Symmetry and Balance
  • ESD Safe Conductive Polyetheretherketone (PEEK) Reinforce with Carbon Fiber Tips “CP”
  • Surface Resistivity 103-105 Ohms/sq.
  • Tweezer Tips have High Heat Capability – 260°C (Continuous Use) – 300°C (Short Time)
  • Acetone / IPA resistant
  • Self Aligning Replacement High Precision Tips save you money vs. replacing the entire tweezers.
  • Lead free

These wafer tweezers are specially designed to handle silicon/gallium aresnide wafers and ceramic/glass substrates.  PEEK tip material is strong and non-scratching for sensitive wafers and thin parts.

More Information on These Wafer Tweezers:
