#TDI 6WF-SA High Precision Swiss 6" Wafer Handling Tweezers

#TDI 6WF-SA High Precision Swiss 6″ Wafer Handling Tweezers

$36.85

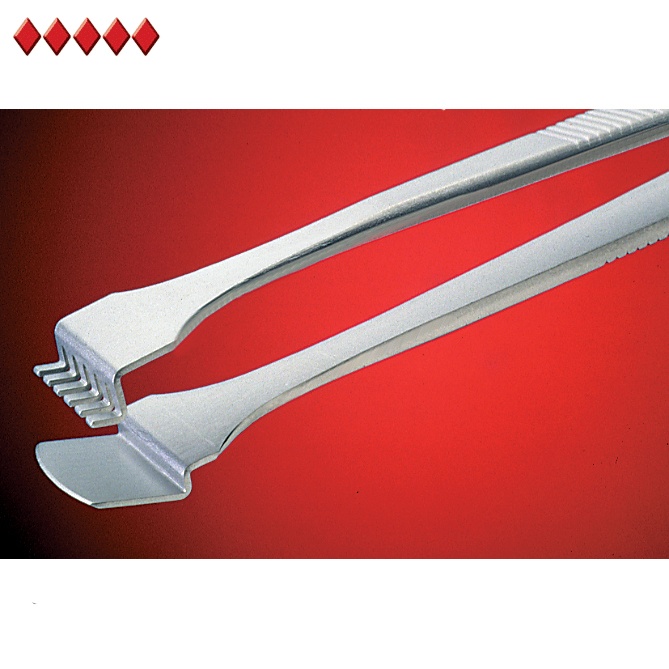

Used for handling 6″ diameter wafers/substrates. Top fingers, stepped bottom paddle.

A: .795″
B: .335″
C: .180″
D: .190″
E: .118″

wafer-diagram-shop

Wafer tweezers specially designed to handle silicon/ gallium arsenide wafers and ceramic/glass substrates.  These wafer handling tweezers include anti-magnetic stainless steel material; perfectly balanced symmetry and anti- glare polished tip edges for accurate positioning of wafers or substrates to avoid breaking thin materials. To eliminate scratching, Teflon coating is also available upon request.

Standard Features:

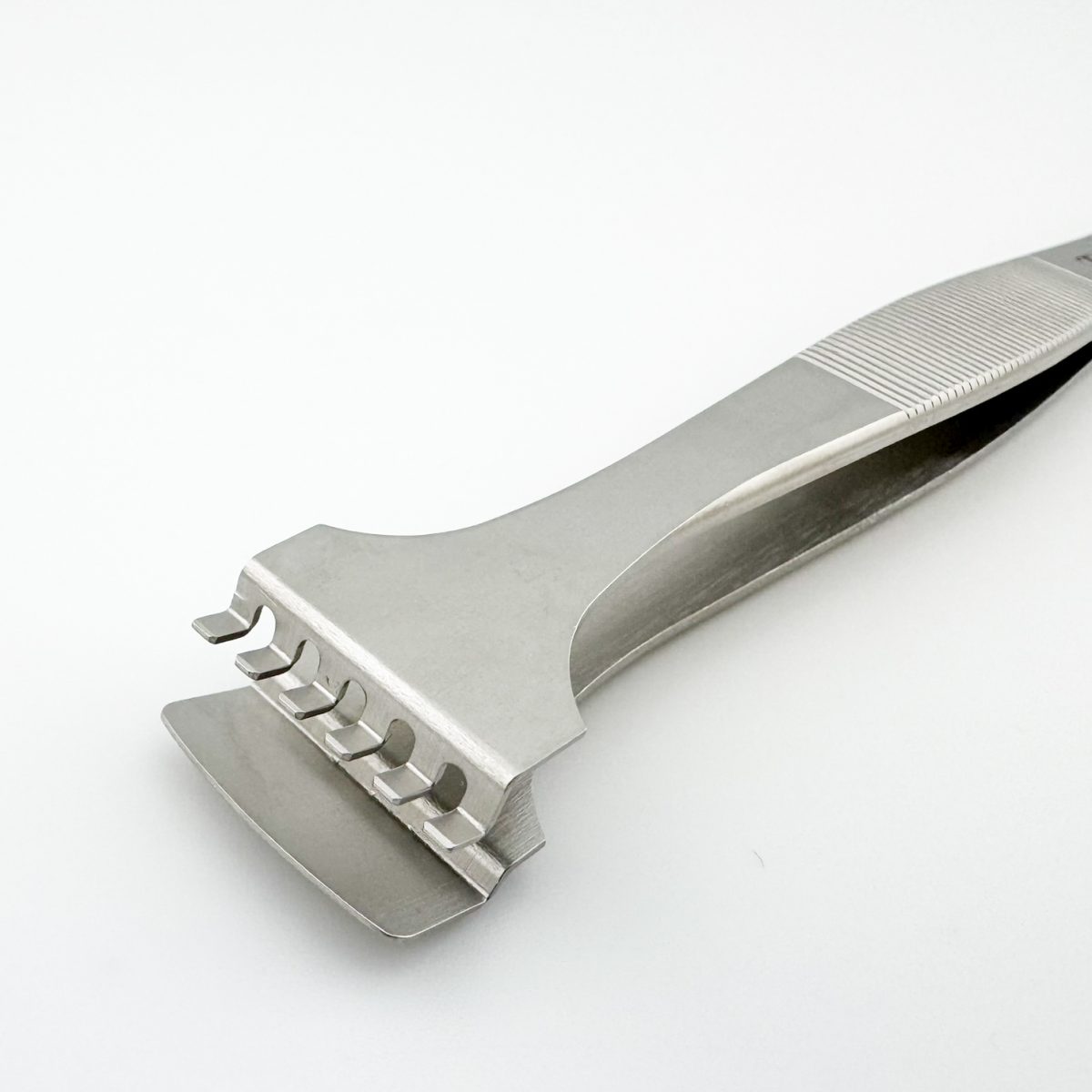

  • Top fingers, stepped bottom paddle.
  • Stainless Anti-Magnetic – “SA”
  • Low Carbon Austenitic Steel
  • Precision Fine Tip Symmetry & Balance
  • Polished Tip Edges Non-Scratching, Anti-Glare Finish
  • Selected Styles Include: Top Fingers and/or Bottom Grid
  • Good Corrosion Resistance to Most Chemicals & Acids
  • Meets the EU regulation RoHS – 2002/95/EG

More Information:

diamonds-grades copy
