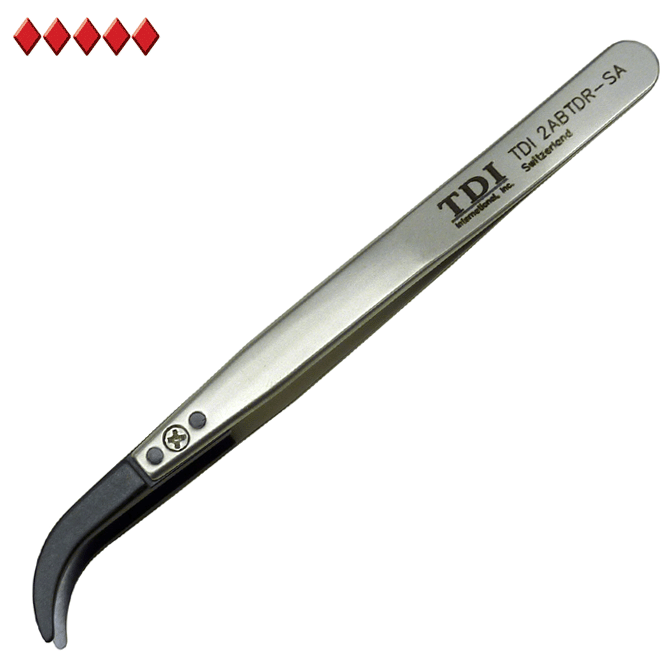

#TDI 2ABTDR-SA High Precision Swiss Static Dissipative “TD” Tweezers
2AB Style Tweezers Curved Wide, Flat Duckbill Tips
Static Dissipative Polymer Tips “TD”®
Class 0 CDM Compliant
Most Critical ESD Applications < 40V ESD Threshold.
Dimensions:
Overall Length (A): 5-1/8″Tip Width (B): .070″
Tip Thickness (C): .024″
Angle (E): 45°
Replaceable Tip Length (L): 1.02″
Standard Features:
- Self-Aligning Replacement Tips – Static Dissipative Polymer
- Excellent Transient Current Discharge
- Surface Resistivity 106 to 108 Ohm/sq. at 40V and 100V Threshold
- Surface Resistivity 107 to 109 Ohm/sq. at 10V Threshold
- Temperature Resistant 200°C (Continuous Use) – 230°C (Short Time)
- Silicone and Chloride Free Polymer
- High Precision Fine Tip Symmetry & Balance
- Stainless Anti-Magnetic Handles “SA”
- Solvent / Acid Resistant, Lead-Free
More Information:
- Self Aligning Replacement Tips Procedure
- Quality Assurance Class 0 CDM Test Procedure
- Transient Current Discharge Chart
- “TD”® Material Data Sheet
- “TD”® Material Chemical Compatibility Chart
