Tweezer Materials Selection Guide – Conductive Plastics

Tweezer Materials Selection Guidelastics

CONDUCTIVE PLASTICS

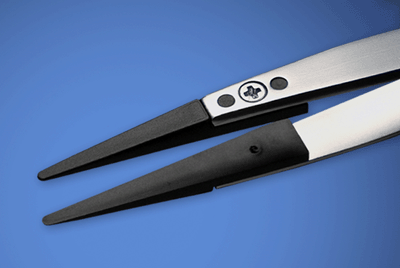

“CP” Conductive PEEK High Precision TweezersCP PEEK Tip Tweezers

ESD safe conductive material with a surface resistivity of 105 Ohms/sq.  PEEK (polyetheretherketone) is very hard and rigid with very high wear resistance.  Boasting a high heat capability of 260°C (continuous use) to 300°C (short time use).

Excellent resistance to most chemicals and aggressive agents.  Typical applications include handling of components in cleaning / chemical / assembly processes.

Material Data Sheet  |  Chemical Compatibility Chart

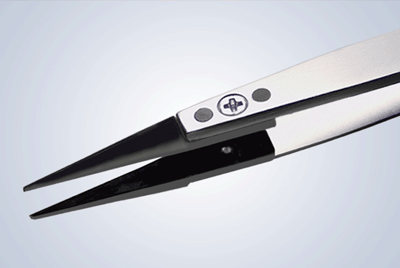

“CF” Conductive CarboFib High Precision TweezersCF CarboFib Tweezers

High precision tweezer tips are perfectly balanced offering fine tip symmetry for precision work.  ESD safe conductive material with a surface resistivity of 102 Ohms/sq.  CarboFib tip tweezers are temperature resistant 130°C (continuous use) to 190°C (short time use).

This material offers very high rigidity and low friction with excellent wear and abrasion resistance.  Moderate chemical resistance, although not resistant to strong acids, alkalis and hot water or steam.  Typical applications for CarboFib tweezers include handling and positioning of scratch-sensitive electronic components and devices.

Material Data Sheet  |  Chemical Compatibility Chart

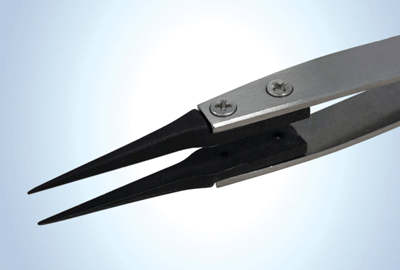

“CF” Conductive CarboFib Precision  Tweezers Precision CF CarboFib Tweezers

Offers precision tip symmetry and balance.  ESD safe conductive material with a surface resistivity of 102 Ohms/sq.  CarboFib tip tweezers are temperature resistant 130°C (continuous use) to 190°C (short time use).

Typical applications for CarboFib tweezers include handling and positioning of scratch-sensitive electronic components and devices.

Material Data Sheet  |  Chemical Compatibility Chart




shion handles

CUSHION HANDLES

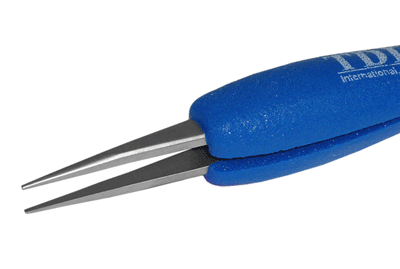

“DVH” Vinyl Handle Coating Cushion GripsCushion Grip Tweezers

Tweezers with ergonomic ESD safe “DVH” cushion grips reduce stress and tension on fingers, while providing superior operator comfort when working continuously with small parts.

Available for most tweezer styles, metal and fiber replaceable tip.  Static dissipative with a surface resistivity of  109-1011 Ohms/sq.




ESD Glossary of Terms
