Desiccator Photo Gallery

Desiccator Cabinets Photo Gallery -  Compare Models







TDI Desiccator Cabinets are available in clear acrylic or static dissipative acrylic. Providing the highest quality and most durable construction to meet the requirements for Cleanroom, ESD and assembly component storage applications. These desiccator cabinets feature our unique ultra nitro-flow system with compartment cut outs in walls and floors for even nitrogen distribution. Spring loaded door latches provide air-tight door seals while continuous hinges provide maximum door support. The plenum chamber option purges nitrogen into compartments at an even rate. Featuring a removable back wall for easy maintenance.

Static dissipative desiccator cabinets offer stainless steel shelves, racks and plates which are common grounded to the desiccator and wire connected to hard ground. Plates are recommended on the floor of each compartment to enhance grounding and protect the surface from abrasion.

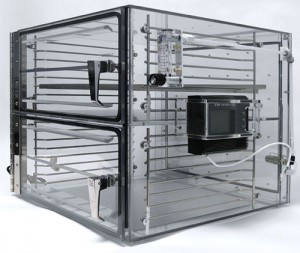

180 - 2 Doors 18"W x 18"D x 18"H
180 - 2 Doors 18"W x 18"D x 18"H

Compartment Size: 16.5"W x 15.5"D x 8"H
Shelf Space: 16"W x 15"D

180D Clear Acrylic RFQ
180SD Static Dissipative RFQ

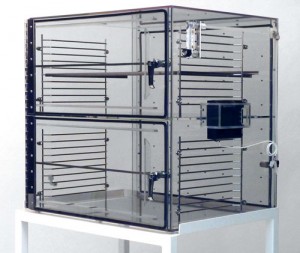

182 - 2 Doors 24"W x 18"D x 24"H
182 - 2 Doors 24"W x 18"D x 24"H

Compartment Size: 22"W x 15.5"D x 11"H
Shelf Space: 21.5"W x 14.75"D

182D Clear Acrylic RFQ
182SD Static Dissipative RFQ

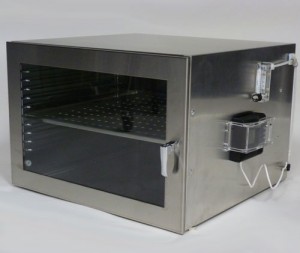

24216T - 1 Door 24"W x 22"D x 16"H
24216T - 1 Door 24"W x 22"D x 16"H

Compartment Size: 22"W x 20"D x 14.5"
Shelf Space:21.5"W x 20"D

Table Top Stainless Desiccator RFQ

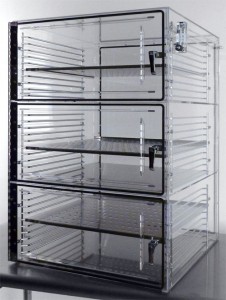

243 - 3 Doors 24"W x 24"D x 36"H
243 - 3 Doors 24"W x 24"D x 36"H

Compartment Size: 22"W x 22"D x 11"H
Shelf Space: 21.5"W x 20"D

243D Clear Acrylic RFQ
243SD Static Dissipative RFQ

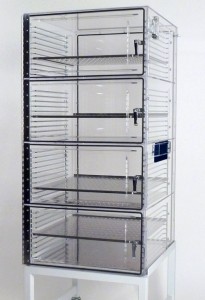

2444 - 4 Doors 24"W x 24"D x 48"H
2444 - 4 Doors 24"W x 24"D x 48"H

Compartment Size: 22"W x 22"D x 11"H
Shelf Space: 21.5"W x 20"D

2444D Clear Acrylic RFQ
2444SD Static Dissipative RFQ

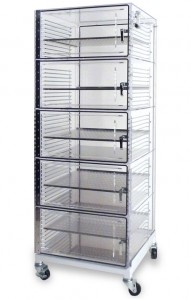

2446 - 5 Doors 24"W x 24"D x 60"H
2446 - 5 Doors 24"W x 24"D x 60"H

Compartment Size: 22"W x 22"D x 11"H
Shelf Space: 21.5"W x 20"D

2446D Clear Acrylic RFQ
2446SD Static Dissipative RFQ

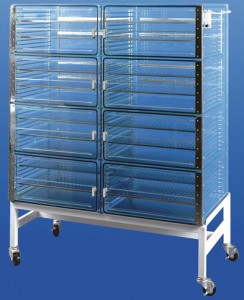

484 - 8 Doors 48"W x 24"D x 48"H
484 - 8 Doors 48"W x 24"D x 48"H

Compartment Size: 22"W x 22"D x 11"H
Shelf Space: 21-1/2"W x 20"D

484D Clear Acrylic RFQ
484SD Static Dissipative RFQ

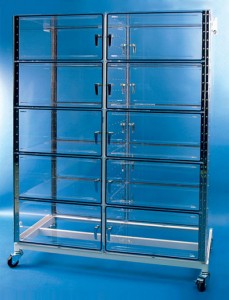

486 - 10 Doors 48"W x 24"D x 60"H
486 - 10 Doors 48"W x 24"D x 60"H

Compartment Size: 22"W x 22"D x 11"H
Shelf Space: 21.5"W x 20"D

486D Clear Acrylic RFQ
486SD Static Dissipative RFQ

4872 - 12 Doors 48"W x 24"D x 72"H
4872 - 12 Doors 48"W x 24"D x 72"H

Compartment Size: 22"W x 22"D x 11"H
Shelf Space: 21-1/2"W x 20"D

4872D Clear Acrylic RFQ
4872SD Static Dissipative RFQ


Stainless Steel Desiccator Cabinets

These stainless steel desiccator cabinets provide clean, high density storage for both clean room and assembly applications and are designed for maximum weight capacity and long term durability. These desiccator cabinets are available in a Table Top, Stacked Modules and Multi-Chamber Models. Featuring tempered glass doors with heavy duty stainless door frames. All stainless steel desiccator cabinets are available as a pass through with doors on both sides with the option of being wall mounted (please specify "pass through" in the comments section of your request for quote).

Multi Chamber stainless steel desiccators are constructed with notched chamber walls and floors, which achieve a single pressure throughout the desiccator cabinet. This eliminates the need for expensive outlet valves for each compartment, required in typical competitor desiccators.

2448SS - 2 Door 24"W x 23"D x 48"H
2448SS - 2 Door
24"W x 23"D x 48"H

Cmpt: 22"W x 20"D x 22"H
Shelf Space: 21-1/2"W x 20"D

RFQ Multi-Chamber

stainless steel desiccator with 3 chambers

24472SS - 2 Door
24"W x 23"D x 72"H

Cmpt: 22"W x 20"D x 22"H
Shelf Space: 21-1/2"W x 20"D

RFQ Multi-Chamber

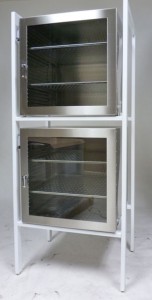

2-#24224T - 2 Stack 24"W x 22"D x 24"H
2-#24224T - 2 Stack
24"W x 22"D x 24"H

Cmpt: 22"W x 20"D x 22"H
Shelf Space: 21.5"W x 20"D

RFQ 2 or 3 Stack

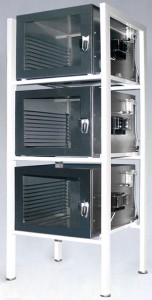

3-#24216T - 3 Stack 24"W x 22"D x 16"H
3-#24216T - 3 Stack
24"W x 22"D x 16"H

Cmpt: 22"W x 20"D x 14-1/2"
Shelf Space:21-1/2"W x 20"D

RFQ 2 or 3 Stack


Application Specific Desiccator Cabinets

Application specific desiccator cabinets for storage of specific products.  This includes wafer carriers, SMT reels, waffle packs, and bonding wire spools.  Providing the highest quality and most durable construction to meet the requirements for cleanroom and assembly component storage applications. TDI application specific desiccator cabinets are designed for in-line nitrogen or a clean dry air (CDA) source. This will furthermore assure adequate gas pressures (PSI - source to desiccator) and adequate gas volume for continued humidity control operation of the desiccator.

Waffle Pack Desiccator with Stand

Waffle Pack Storage
Twice the Storage Capacity!
5 Models to Choose From

5 Door Tape Reel Desiccator

SMT Reel Storage
7" & 13" Tape & Reel Storage
6 Models to Choose From

wafer carrier storage desiccator cabinet

Wafer Carrier Storage Cabinet
Up to 8" Diameter Wafers
3 Models to Choose From

Bonding Wire Storage Cabinet
Upright Spool Storage
4 Models to Choose From
